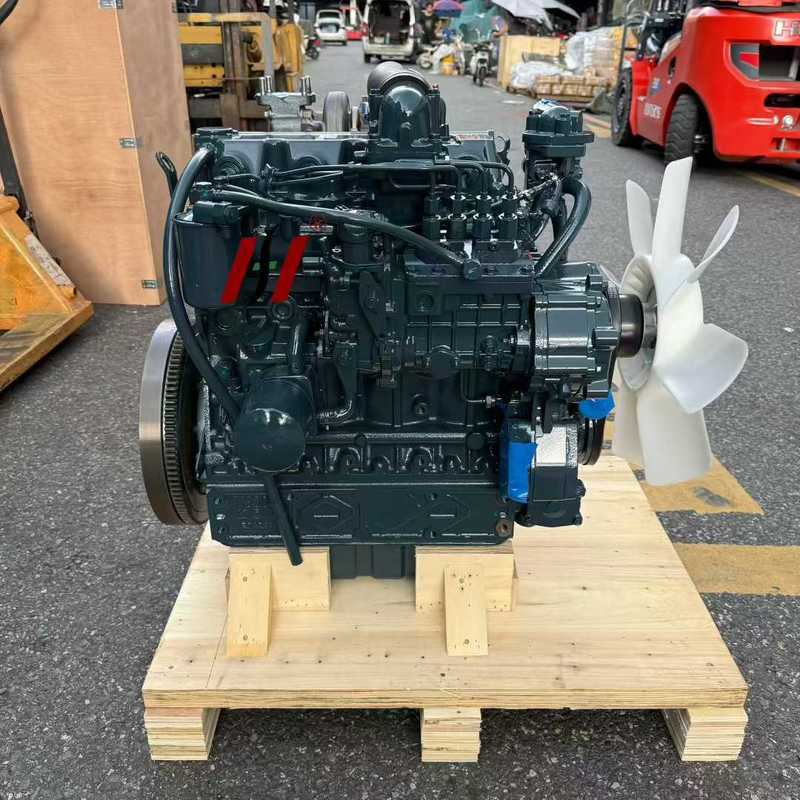

3.769L Kubota Engine V3800DI-TE2B Direct Injection Diesel Engine Fuel Efficient
Product Details
| State: | Brand New | Engine Model: | V3800-DI |
|---|---|---|---|
| Type: | 4-cylinder Inline Diesel Engine | Displacement: | 3.769 L (3769 Cc) |
| Bore X Stroke: | 100 Mm × 120 Mm | Aspiration: | Turbocharger |
| Rated Power: | 48–85 KW (64–115 Hp) @ 2200–2600 Rpm | Cooling System: | Water-cooled |
| Combustion System: | Direct Injection | Starting System: | Electric Start |
| Fuel System: | Mechanical | ||
| Highlight |
3.769L Kubota Engine,V3800DI-TE2B Kubota Engine,V3800DI-TE2B Direct Injection Diesel Engine |
||
Product Description
| Attribute | Value |
|---|---|
| Engine Model | V3800-DI |
| Type | 4-cylinder inline |
| Displacement | 3.769 L (3769 cc) |
| Bore x Stroke | 100 mm × 120 mm |
| Aspiration | turbocharger |
| Rated Power | 48–85 kW (64–115 hp) @ 2200–2600 rpm |
| Fuel Type | Diesel |
| Cooling System | Water-cooled |
| Combustion System | Direct Injection |
| Starting System | Electric Start |
| Fuel System | Mechanical |
Kubota V3800-DI is a 3.8-liter, 4-cylinder, water-cooled diesel engine with a Direct Injection (DI) combustion system. Belonging to the V3000 series, it combines high power output with reliability, widely used in construction machinery, generator sets, agricultural and industrial equipment.
- High Power Density: Delivers up to 95 hp from 3.8 liters displacement
- Durable and Reliable: Robust cylinder block and crankshaft designed for heavy-duty use
- Fuel Efficient: Direct injection system ensures better combustion efficiency
- Flexible Options: Available in Naturally Aspirated and Turbocharged versions
- Construction Machinery: Excavators, loaders, skid-steer loaders
- Generator Sets: Diesel gensets from 30-60 kVA
- Agricultural Equipment: Tractors, harvesters, balers
- Industrial Equipment: Air compressors, pump sets
